Purpose:
Intended to store and preserve gametes and/or embryos close to body temperature.
MINC+ incubator also includes the DishTrace platform, which combines functionality through the incubator touchscreen and a PC software program to provide a wide range of dish-data management tools.

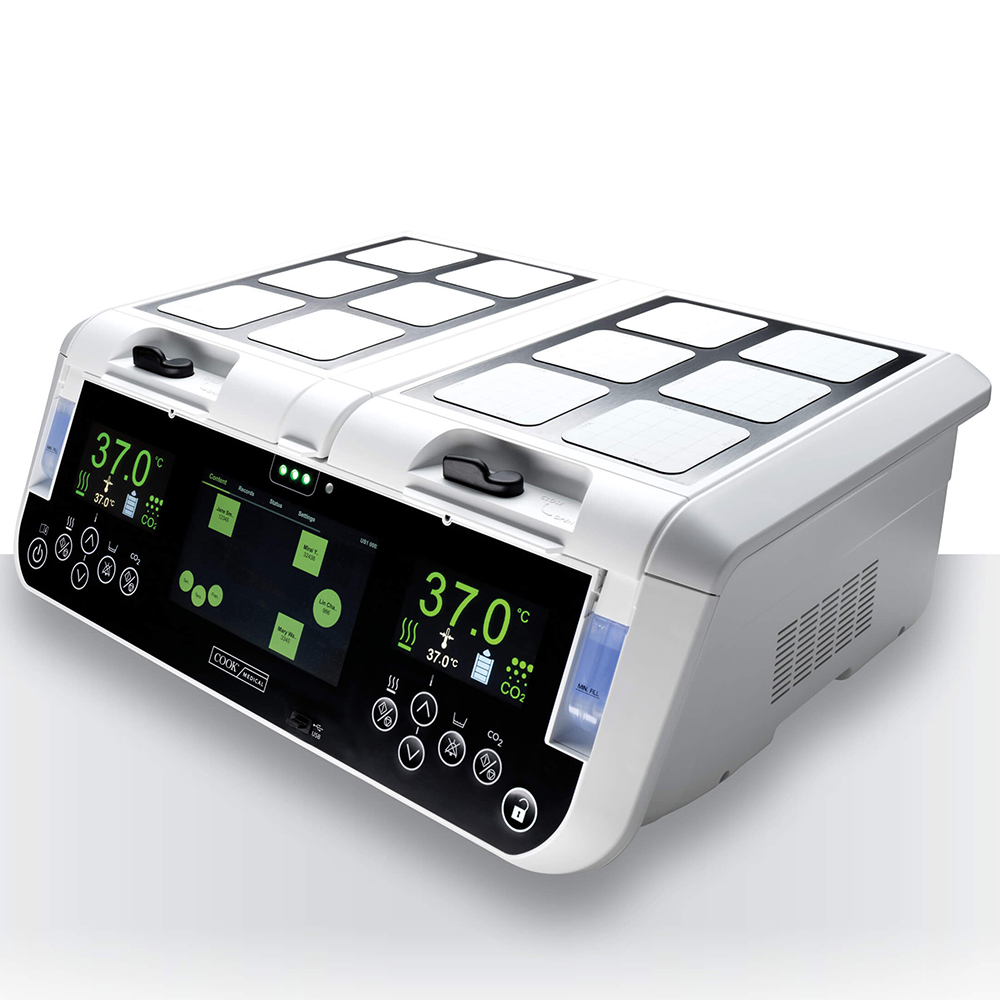

The MINC+ Benchtop incubator is part of a suite of assisted reproductive technology (ART) products offered by Cook Medical, including culture media and devices for ovum aspiration, intrauterine insemination, and embryo transfer and manipulation.
+ Trusted performance MINC Benchtop Incubators have been an integral part of IVF practice worldwide for 20 years.
+ DishTrace The DishTrace platform combines functionality through the incubator touchscreen and PC software to provide a wide range of dish-data management tools
DishTrace MINC+ DishTrace MINC+ allows you to access and log information via the touchscreen on the center console.
+ Capacity Chambers are 50% larger than the previous generation of MINC, with room for 12 Nunc® 4 well dishes. Media warming chamber holds 6 BD® Falcon® test tubes.
+ Monitoring features MINC+ continuously monitors critical functions. Alerts and status icons are visible on the front screens
+ DishTrace PC software allows you to monitor and manage up to 50 MINC+ incubators
- Add and edit dish records, assign dish locations, and view environmental settings.
- Check in and check out dishes
+ Humidification Each chamber is independently humidified.
Gas-flow bubbles and the water level can be observed at the front of the device
+ Peace of mind Service life is 12 years. A dedicated service and maintenance team is available.
The MINC+ Benchtop Incubator is intended to be used in the assisted reproduction technology as part of the process to treat infertile patients.
The MINC+ components include:
- MINC+ Benchtop Incubator
- MINC+ user manual
- Two disposable humidification flasks
- Braided Connecting Tube (3 m length)
- Medical grade mains power cord
- USB flash drive with DishTrace PC software
- Ethernet cable
- External alarm connector
- 12 magnetic patient information plates
- Gas inlet T-piece with protective caps
- Test tube cradle
- Front panel USB port cover
Order Number | Reference Part Number | Dimensions
mm |
Weight
kg |
Length
m |
Principal |
MINC+ Benchtop Incubator | |||||
G44429 | K-MINC-2000 | 556 W x 197 H x 449 D | 23.4 | – |
Cook Medical USA |
MINC+ Humidification Flask | |||||
G47317 | K-MINC-2000-HF | – | – | – | |
Braided Connecting Tube | |||||
G53848 | K-MINC-BCT-10-300 | – | – | 3 |
- Gas supply type: Blend of 6% CO2, 5% O2, 89% N2 (Cook culture system at sea level) or high-purity 6% CO2 in air (recommended tolerances ± 0.2%)
- Gas supply pressure: 150 kPa ± 15 kPa (21.8 psi ± 2.2 psi) (1,500 mbar ± 150 mbar)
- Power supply: Universal input 100-240 VAC, 50-60 Hz
