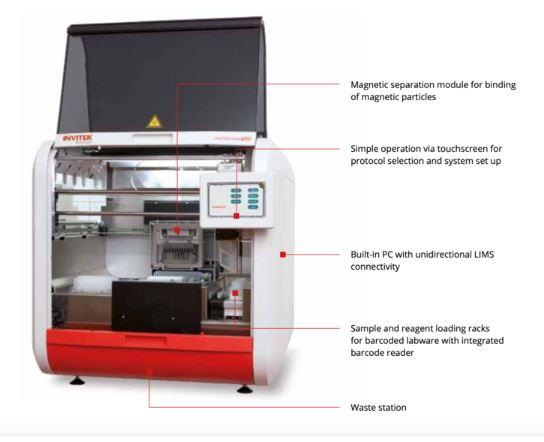

InviGenius PLUS Robotic Extraction System
The InviGenius® PLUS is a fully automated platform for nucleic acid purification that processes up to 12 samples simultaneously using magnetic beads.
Fully automated extraction
Easy handling with only 10 – 15 min hands-on-time: Simply load your samples and reagents into the system, choose your extraction protocol and you have your hands free for other work. A user-friendly, intuitive software and touchscreen interface simplify your DNA/RNA extraction workflow.
Standardized sample preparation
The InviGenius® PLUS delivers superior DNA and RNA quality. Barcode-supported identification enables the tracking of samples and reagents during the entire purification process.
Key Specifications of InviGenius PLUS Robotic Extraction System
| Features | InviGenius PLUS |
| Technical specifications: | |
| Sample volume | 200 to 4000 μl (protocol-specific) |
| Capacity | Up to 12 samples per run |
| Processing time | 60 – 240 min (protocol-specific) |
| Magnetic rods | 12 (plus bottom magnets) |
| Heating temperature | Heat incubator, up to 95 °C |
| Computer | Integrated PC |
| Operating system | MS Windows |
| User interface | Touch screen |
| Ports/drives | USB, Ethernet, RS232 / 80 GB hard disc |
| Decontamination | UV irradiance |
| Dimensions | 75.6 x 80 x 76.5 cm, approx. 76 kg |
| Type | Stand-alone table top instrument |
| Pipette tips | 1100 µl conductive disposable filter tips |
| Integrated barcode reader | 2/5 Interleaved, Code 39, Code 128, Codabar (ratio >= 2.2:1) max. length of barcode: 20 digits, resolution down to 0.21 mm |
| Air displacement pipettor | Up to 1000 µl volume range barometric and capacitive liquid level detection |
| Pipetting precision | Less than 2 % CV at 20 µl, less than 1 % CV at 100 µl |
InviGenius PLUS is a Perfect System for a wide range of starting materials – various target nucleic acids such as cell-free or genomic DNA, pathogen DNA/RNA, and even total RNA from stabilized blood samples.
