Floor Centrifuges and Rotors (Thermo Fisher Scientific, USA)

Floor Centrifuges (Model Types)



Large Capacity Floor Centrifuge

Low-speed floor model centrifuges are designed for low-to-moderate speed centrifugation in environments such as hospital blood banks and labs, satellite blood processing centers, and clinical reference. They can accommodate a wide range of rotor configurations. The Thermo Scientific™ Cryofuge™ 8 and 16 blood banking centrifuges feature a compact design and quick set-up that allows for simplified blood processing applications.

Product Name	Catalog Number	Unit Size	Specifications	Product
Sorvall™ BP 8 and 16 Blood Banking Centrifuges	75007695	Each	Capacity: 12 x 500 mL and 16 x 500 mL Blood Bags, Max. Speed: 4,700 rpm, Max. RCF: 7,187 x g, Run Time: 99 hours 59 min 59 sec (1-sec increments), Electrical Requirements:  380/400/415 V ±10% 50 Hz 3-phase.
Sorvall™ BP 8 and 16 Blood Banking Centrifuges	75007689	Each	Capacity: 6 x 550 mL and 8 x 550 mL Blood Bags, Max. Speed: 5,000 rpm, Max. RCF: 7,295 x g Run Time: 99 hours 59 min 59 sec (1-sec increments), Electrical Requirements:  380/400/415 V ±10% 50 Hz 3-phase.
Cryofuge™ 8 and 16 Blood Banking Centrifuges	75007674	Each	Capacity: 12 x 500 mL and 16 x 500 mL Blood Bags, Max. Speed: 4,700 rpm, Max. RCF: 7,187 x g, Run Time: 99 hours 59 min 59 sec (1-sec increments), Electrical Requirements:  380/400/415 V ±10% 50 Hz 3-phase.
Cryofuge™ 5500i Refrigerated Blood Processing Floor Model Centrifuge	75004475	Each	Capacity: 12 x 500 mL and 16 x 500 mL Blood Bags, Max. Speed: 4,700 rpm, Max. RCF: 7,187 x g, Run Time: 99 hours 59 min 59 sec (1-sec increments), Electrical Requirements:  380/400/415 V ±10% 50 Hz 3-phase.

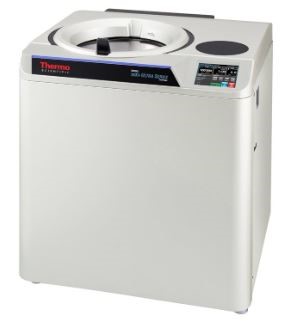

Super Speed Floor Model Centrifuge

Superspeed floor model centrifuges are compact and designed for multi-liter capacity and high speeds for fast sample processing and increased productivity. Options include a touchscreen interface, push-button rotor exchange, and auto rotor identification. Featuring technologically advanced simplicity, the Thermo Scientific™ Sorvall™ LYNX 6000 superspeed centrifuge has application flexibility and push-button security.

Product Name	Catalog Number	Unit Size	Specifications	Product
Sorvall LYNX 6000 Superspeed Centrifuge	75006590	Each	Capacity: 6 x 1000 mL, Max. Speed: 29,000 rpm, Max. RCF: 100,605 x g, Run Time:  99 hours, hold, Electrical Requirements: 200/240 V 50/60 Hz 30 A, Single Phase. Net weight: 622 lb. (283 kg).
Sorvall LYNX 4000 Superspeed Centrifuge	75006580	Each	Capacity: 4 x 1000 mL, Max. Speed: 24,000 rpm, Max. RCF: 68,905 x g, Run Time:  99 hours, hold, Electrical Requirements: 200/240 V 50/60 Hz 30 A, Single Phase, Net weight: 622 lb. (283 kg).

Ultra Speed Floor Model Centrifuge

Maximize space with the small footprint of floor-standing spinning rotor centrifuges. Devices offer a large processing capacity and are capable of reaching very high speeds for shorter total spin times that boost productivity. The Thermo Scientific™ Sorvall™ MX Plus Series Floor Model Micro-Ultracentrifuge, allows you to conduct more high-capacity experiments in less time using cutting-edge, versatile rotor capacities

Product Name	Catalog Number	Unit Size	Specifications	Product
Sorvall™ WX+ Ultracentrifuge Series	75000100	Each	Capacity: 6 x 250 mL, Max. RCF: 802,000 x g (T-890 rotor), Net weight: 859.8 lb. (390kg), Max. Speed: 100,000 rpm, Electrical Requirements: 208/240 V 50/60 Hz.
Sorvall™ WX+ Ultracentrifuge Series	75000080	Each	Capacity: 6 x 250 mL, Max. RCF: 546,883 x g (T-890 rotor), Net weight: 859.8 lb. (390kg), Max. Speed: 80,000 rpm, Electrical Requirements: 208/240 V 50/60 Hz.
Sorvall™ MTX 150 Micro-Ultracentrifuge	46963	Each	Capacity: 6 x 30 mL (with S50A rotor) or 4 x 7 mL (with S50-ST rotor), Max. RCF: 1,048,680 x g, Net weight: 213 lb. (97 kg), Max. Speed: 150,000 rpm, Electrical Requirements: 230 V 50/60 Hz.
Orvall™ MX Plus Series Floor Model Micro-Ultracentrifuge	50135648	Each	Capacity: 6 x 30 mL (with S50A rotor) or 4 x 7 mL (with S50-ST rotor), Max. RCF: 770,460 x g, Max Speed: 120,000 rpm, Net weight: 231 lb. (105 kg), Electrical Requirements: 230 V 50/60 Hz.

Bioprocessing Floor Model Centrifuge

Thermo Scientific has designed bioprocessing floor model centrifuges for high-quality harvesting, separation, and purification bioprocessing methods. With an enhanced capacity of up to 16 Liters of sample volume, a compact footprint and innovative features to optimize operations, maximizing productivity and efficiency is simplified.

Product Name	Catalog Number	Unit Size	Specifications	Product
Sorvall™ BIOS 16 Bioprocessing Centrifuge	75007685	Each	Capacity: 8 x 2000 mL, Max. RCF: 8,500 x g, Net weight: 859.8 lb. (390kg), Max. Speed: 5,400 rpm, Electrical Requirements: 200/2028/ 220/230/240 V ±10% 50/60 Hz, Single Phase.
Sorvall™ CC40NX Centrifuge Series	75000310	Each	Capacity: 8 L (batch), 3.2 L (continuous), Max. RCF: 118,000 x g, Net weight: 859.8 lb. (390kg), Max. Speed: 40,000 rpm, Electrical Requirements: 200/208/220 /230/240 V ±10% 50/60 Hz.

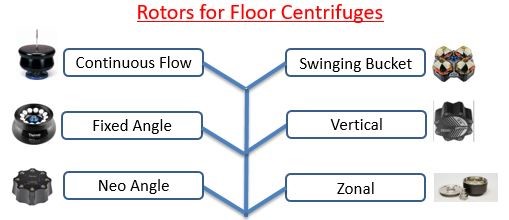

Rotors for Floor Centrifuges



Continuous Flow Rotors for Floor Centrifuges

Product Name	Catalog Number	Unit Size	Specifications	Product
TCF-20 Continuous Flow Rotor	75003012	Each	Capacity: 1350 mL, Max. Speed: 20,000 rpm, Max. RCF: 42,913 x g.
TCF-32 Continuous-Flow Rotors	45820	Each	Capacity: 940mL/430 mL, Max. Speed: 32,000 rpm, Max. RCF: 102,000 x g.

Fixed Angle Rotors for Floor Centrifuges

Product Name	Catalog Number	Unit Size	Specifications	Product
Fiberlite™ F10-4 x 1000 LEX Fixed Angle Rotor with Auto-Lock	096-041075	Each	Capacity: 4 x 1000 mL, Max. Speed: 10,500 rpm, Max. RCF: 20,584 x g.
Fiberlite™ F14-14 x 50cy Fixed-Angle Rotor	096-145075	Each	Capacity: 14 x 50 mL, Max. Speed: 14,000 rpm, Max. RCF: 33,746 x g.

Neo Angle Rotors for Floor Centrifuges

Product Name	Catalog Number	Unit Size	Specifications	Product
TN-890 Neo Angle Rotor	75003033	Each	Capacity: 8 x 5 mL, Max. Speed: 90,000 rpm, Max. RCF: 645,101 x g.

Swinging Bucket Rotors for Floor Centrifuges

Product Name	Catalog Number	Unit Size	Specifications	Product
BIOFlex™ HS Swinging-Bucket Rotor	75003002	Each	Capacity: 4 x 400 mL, Max. Speed: 7,000 rpm, Max. RCF: 10,025 x g.
TH-660 Swinging Bucket Rotor Package	10502	Each	Capacity: 6 x 4.4 mL, Max. Speed: 60,000 rpm, Max. RCF: 488,576 x g.
2000mL BIOS Swinging Bucket Rotors	75003962	Each	Capacity: 6 x 2000 mL, Max. Speed: 4,700 rpm, Max. RCF:7,187 x g.

Vertical Rotors for Floor Centrifuges

Product Name	Catalog Number	Unit Size	Specifications	Product
S120-VT Vertical Rotor	45593	Each	Capacity: 8 x 2 mL, Max. Speed: 120,000 rpm, Max. RCF: 500,237 x g.
TV-860 Vertical Rotor	53289	Each	Capacity: 8 x 35 ML, Max. Speed: 60,000 rpm, Max. RCF: 340,596 x g.

Zonal Rotors for Floor Centrifuges

Product Name	Catalog Number	Unit Size	Specifications	Product
TCF-20 Zonal Rotor	75003013	Each	Capacity: 1350 ML, Max. Speed: 20,000 rpm, Max. RCF: 42,913 x g.
